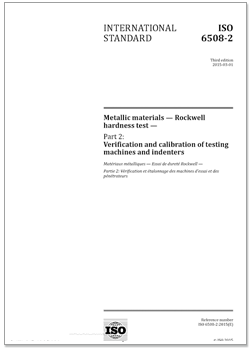

International Standard ISO 6508-2:2015(E)
Metallic materials — Rockwell hardness test —
Part 2:
Verification and calibration of testing machines and indenters
ISO 6508 consists of the following parts under the general title Metallic materials —— Rockwell hardness test:
ISO 6508-1Metallic materials —— Rockwell hardness test Part 1: Test method
ISO 6508-2 Metallic materials —— Rockwell hardness test Part 2: Verification and calibration of testing machines and indenters
ISO 6508-3 Metallic materials —— Rockwell hardness test Part 3: Calibration of refernce blocks
Content
Foreword
1 Scope
2 Normative references
3 General conditions
4 Direct verification of the testing machine
4.1 General
4.2 Calibration and verification of the test force.
4.3 Calibration and verification of the depth-measuring system
4.4 Calibration and verification of the testing cycle
4.5 Calibration and verification of the machine hysteresis
5 Indirect verification of the testing machine
5.1 General
5.2 Procedure
5.3 Repeatability
5.4 Bias
5.5 Uncertainty of measurement
6 Calibration and verification of Rockwell hardness indenters
6.1 General
6.2 Diamond indenter
6.2.1 General
6.2.2 Direct calibration and verification of the diamond indenter
6.2.3 Indirect verification of diamond indenters
6.3 Ball indenter
6.3.1 Direct calibration and verification of the ball indenter
6.3.2 Indirect verification of the ball holder assembly
6.4 Marking
7 Intervals between direct and indirect calibrations and verifications
8 Verification report
Annex A (normative) Repeatability of testing machines
Annex B (informative) Uncertainty of measurement of the calibration results of the
hardness testing machine
Bibliography
1 Scope
This part of ISO 6508 specifies two separate methods of verification of testing machines (direct and
indirect) for determining Rockwell hardness in accordance with ISO 6508-1:2015, together with a
method for verifying Rockwell hardness indenters.
The direct verification method is used to determine whether the main parameters associated with
the machine function, such as applied force, depth measurement, and testing cycle timing, fall within
specified tolerances. The indirect verification method uses a number of calibrated reference hardness
blocks to determine how well the machine can measure a material of known hardness.
The indirect method may be used on its own for periodic routine checking of the machine in service.
If a testing machine is also to be used for other methods of hardness testing, it shall be verified
independently for each method.
This part of ISO 6508 is applicable to stationary and portable hardness testing machines.
Attention is drawn to the fact that the use of tungsten carbide composite for ball indenters is considered
to be the standard type of Rockwell indenter ball. Steel indenter balls may continue to be used only
when complying with ISO 6508-1:2015, Annex A.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
ISO 376, Metallic materials — Calibration of force-
proving instruments used for the verification of uniaxial testing machines
ISO 6507-1, Metallic materials — Vickers hardness test — Part 1: Test method
ISO 6508-1:2015, Metallic materials — Rockwell hardness test — Part 1: Test method
ISO 6508-3:2015, Metallic materials — Rockwell hardness test — Part 3: Calibration of
reference blocks
