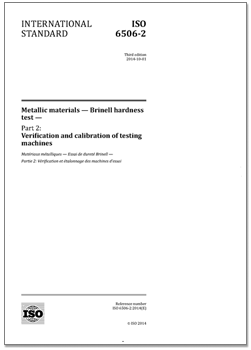

International Standard ISO 6506-2:2014(E)
Metallic materials — Brinell hardness test —
Part 2:
Verification and calibration of testing machines
ISO 6506 consists of the following parts, under the general title Metallic materials —— Brinell hardness test:
ISO 6506-1 Metallic materials —— Brinell hardness test Part 1: Test method
ISO 6506-2 Metallic materials —— Brinell hardness test Part 2: Verification and calibration of testing machines and indenters
ISO 6506-3 Metallic materials —— Brinell hardness test Part 3: Calibration of refernce blocks
ISO 6506-4Metallic materials —— Brinell hardness test Part 4: Table of hardness values
Contents
Foreword
1 Scope
2 Normative references
3 General conditions
4 Direct verification
4.1 General
4.2 Measurement of the test forces
4.3 Measurement of the properties of the indenter ball
4.4 Calibration of the indentation diameter measuring system
4.5 Verification of the testing cycle
5 Indirect verification
6 Intervals between verifications
7 Verification report/calibration certificate
Annex A (informative) Uncertainty of measurement of the verification results of the hardness
testing machine
Annex B (normative) Verification of hardness testing machines that are incapable of meeting the
specified force/time profile
Bibliography
1 Scope
This part of ISO 6506 specifies methods of direct and indirect verification of testing machines used for
determining Brinell hardness in accordance with ISO 6506?1, and also specifies when these two types of
verification has to be performed.
The direct verification involves checking that individual machine performance parameters fall within
specified limits whereas the indirect verification utilizes hardness measurements of reference blocks,
calibrated in accordance with ISO 6506?3, to check the machine’s overall performance.
If a testing machine is also to be used for other methods of hardness testing, it has to be verified
independently for each method.
This part of ISO 6506 is applicable to both fixed location and portable hardness testing machines. For
machines that are incapable of satisfying the specified force-time profile, the direct verification of force and testing cycle can be modified by the use of Annex B.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
ISO 376, Metallic materials — Calibration of force-proving instruments used for the verification of
uniaxial testing machines
ISO 6506?1:2014, Metallic materials — Brinell hardness test — Part 1: Test method
ISO 6506?3, Metallic materials — Brinell hardness test — Part 3: Calibration of reference blocks
ISO 6507?1, Metallic materials — Vickers hardness test — Part 1: Test method
相關標準
國家標準GB/T 231.2-2012《金屬材料 布氏硬度試驗 第2部分：硬度計的檢驗與校準》
本標準使用重新起草法修改采用國際標準ISO6506-2:2005《金屬材料 布氏硬度試驗 第2部分:硬度計的檢驗與校準》(第二版),在文本結構和技術內容方面與ISO6506-2:2005一致。
本標準與ISO6506-2:2005的技術性差異及其原因如下:
—— 刪除了ISO6506-2:2005的前言,重新編寫了前言;
—— 關于規范性引用文件,本部分做了具有技術性差異的調整,以適應我國的技術條件,調整的內容集中反映在第2章“規范性引用文件”中,具體調整如下:
● 用修改采用國際標準的GB/T231.1代替ISO6506-1(見第1章、4.2.4、4.5、5.4和附錄A);
● 用修改采用國際標準的GB/T231.3代替ISO6506-3(見5.1);
● 用修改采用國際標準的GB/T4340.1代替ISO6507-1(見4.3.4.2);
● 用等同采用國際標準的GB/T13634代替ISO376(見4.2.3);
—— 將4.5中“時控誤差最大允許值的指標”由“±1.0s”修改為“±0.5s”,以改正ISO6506-2:2005原文中4.5與A.1.4中該項技術指標不協調的錯誤(見4.5和附錄A 的A.1.4);
—— 由于5.3的注中含有要求,故將該注變成了正文(見5.3);
—— 改正了附錄A 的表A.1和A.5中一些錯誤的計算結果和數據,并在做過改正的地方用下劃線注明;
—— 規范了附錄A 中向公式里代入數值的一些計算式的表達方法;
—— 將附錄A 的公式(A.10)、公式(A.13)和表A.9中的符號“b”用符號“E”替換;
—— 刪除了參考文獻。
本標準與ISO6506-2:2005相比存在技術性差異,這些差異涉及的條款已通過在其外側頁邊空白位置的垂直單線(│)進行了標示。
本標準還做了下列編輯性修改:
—— 將“ISO6506的本部分”一詞改為“本部分”;
—— 用中文的小數點符號“.”代替英文的小數點符號“,”。
