英文名稱：
ASTM E110-14

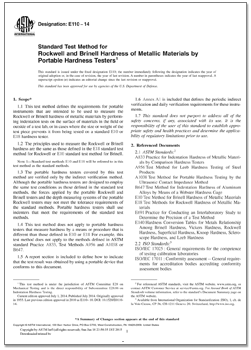

Standard Test Method for
Rockwell and Brinell Hardness of Metallic Materials by
Portable Hardness Testers
中文名稱：
ASTM E110-14
使用便攜式硬度計測試金屬材料洛氏和布氏硬度的標準試驗方法
代號說明：
This standard is issued under the fixed designation E110; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (ε) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the U.S. Department of Defense.
版本說明：
1 This test method is under the jurisdiction of ASTM Committee E28 on
Mechanical Testing and is the direct responsibility of Subcommittee E28.06 on
Indentation Hardness Testing.
Current edition approved July 1, 2014. Published July 2014. Originally approved
in 1955. Last previous edition approved in 2010 as E110– 10. DOI: 10.1520/E0110-
14.
2 For referenced ASTM standards, visit the ASTM website, www.astm.org, or
contact ASTM Customer Service at [email protected]. For Annual Book of ASTM
Standards volume information, refer to the standard’s Document Summary page on
the ASTM website.
3 Available from International Organization for Standardization (ISO), 1, ch. de
la Voie-Creuse, CP 56, CH-1211 Geneva 20, Switzerland, http://www.iso.org.
標準正文
1. Scope
1.1 This test method defines the requirements for portable
instruments that are intended to be used to measure the
Rockwell or Brinell hardness of metallic materials by performing
indentation tests on the surface of materials in the field or
outside of a test lab, or in cases where the size or weight of the
test piece prevents it from being tested on a standard E10 or
E18 hardness tester.
1.2 The principles used to measure the Rockwell or Brinell
hardness are the same as those defined in the E18 standard test
method for Rockwell or E10 standard test method for Brinell.
NOTE 1—Standard test methods E10 and E18 will be referred to in this
test method as the standard methods.
1.3 The portable hardness testers covered by this test
method are verified only by the indirect verification method.
Although the portable hardness testers are designed to employ
the same test conditions as those defined in the standard test
methods, the forces applied by the portable Rockwell and
Brinell testers and the depth measuring systems of the portable
Rockwell testers may not meet the tolerance requirements of
the standard methods. Portable hardness testers shall use
indenters that meet the requirements of the standard test
methods.
1.4 This test method does not apply to portable hardness
testers that measure hardness by a means or procedure that is
different than those defined in E10 or E18 For example, this
test method does not apply to the methods defined in ASTM
standard Practice A833, Test Methods A956 and A1038 or
B647.
1.5 A report section is included to define how to indicate
that the test result was obtained by using a portable device that
conforms to this document.
1.6 Annex A1 is included that defines the periodic indirect
verification and daily verification requirements for these instruments.
1.7 This standard does not purport to address all of the
safety concerns, if any, associated with its use. It is the
responsibility of the user of this standard to establish appropriate
safety and health practices and determine the applicability
of regulatory limitations prior to use.
2. Referenced Documents
2.1 ASTM Standards
A833 Practice for Indentation Hardness of Metallic Materials
by Comparison Hardness Testers
A956 Test Method for Leeb Hardness Testing of Steel
Products
A1038 Test Method for Portable Hardness Testing by the
Ultrasonic Contact Impedance Method
B647 Test Method for Indentation Hardness of Aluminum
Alloys by Means of a Webster Hardness Gage
E10 Test Method for Brinell Hardness of Metallic Materials
E18 Test Methods for Rockwell Hardness of Metallic Materials
E691 Practice for Conducting an Interlaboratory Study to
Determine the Precision of a Test Method
E140 Hardness Conversion Tables for Metals Relationship
Among Brinell Hardness, Vickers Hardness, Rockwell
Hardness, Superficial Hardness, Knoop Hardness, Scleroscope
Hardness, and Leeb Hardness
2.2 ISO Standards
ISO/IEC 17025 : General requirements for the competence
of testing calibration laboratories
ISO/IEC 17011 : Conformity assessment -- General requirements
for accreditation bodies accrediting conformity
assessment bodies
